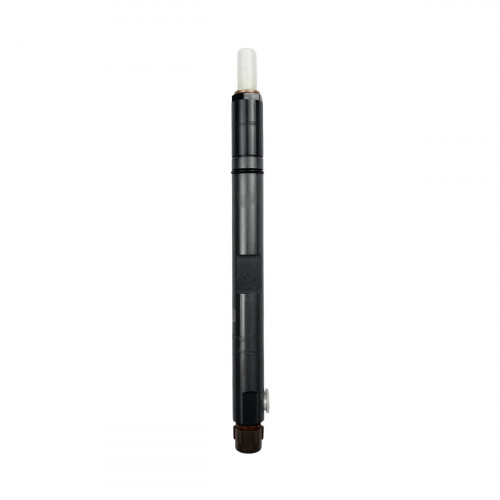

Fuel injector 320/06837 JCB 444, OEM

Fuel injector 320/06837 is an OEM part for the machines with the JCB Dieselmax 444 engine.

The biggest factor in injector life is fuel cleanliness: the nozzle holes are a few microns across, and water or dirt in the fuel wears or blocks them. On machines running on poor fuel, the injectors are renewed sooner. When an injector is changed, the sealing washers, O-rings and leak-off seals are always renewed as well. If the engine has run on poor fuel, the fuel filters and water separator are renewed along with the injectors and the bottom of the tank is cleaned, otherwise the new injectors will soon fail for the same reason.

Specifications

Compatibility

According to the product card, 320/06837 is a fuel injector. The card also lists 320/06722, B05501A, G01701A. Fit is confirmed by the part number. The catalogue also has the aftermarket version and genuine version of this part. Other parts are in Construction machinery fuel injectors.

Fitting

Before removing the injector, clean around it, disconnect the fuel lines and connector and cap the open connections. Always remove the old copper washer from the well. Fit the new injector with a new washer and O-rings and tighten the clamp and the high-pressure line nut to the specified torque, connecting the high-pressure pipes without strain. After assembly, bleed the fuel system, run the engine and check for leaks, smooth idle and smoke; on electronic systems, enter the injector code.
