3 holes arm trapezium link 644 mm 331/43848 JCB 3CX/4CX, aftermarket

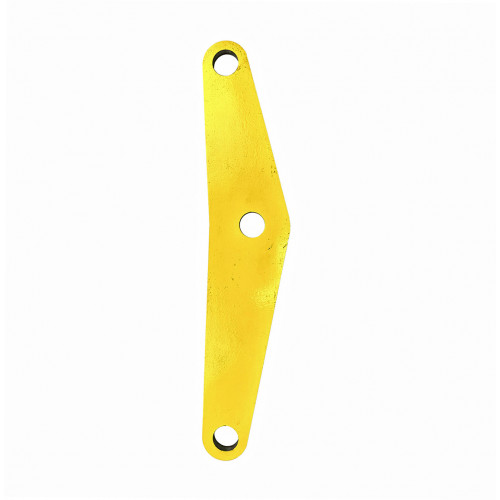

3 holes arm trapezium link 644 mm 331/43848 is an aftermarket part for the JCB 3CX and 4CX backhoe loaders. According to the product card, this part is an arm trapezium link (3 holes), size 644 mm.

Links (trapezium links, boomerangs, dog bones) are jointed intermediate parts that pass the movement of a cylinder to the bucket or dipper. On the loader arm the tilt cylinder opens and closes the bucket through the trapezium and links; on the backhoe the links give the bucket a wider angle of rotation. These parts work under heavy load, and worn eyes or a bent link upset the bucket geometry and make the joints knock. The link joints are greased every day. A bent link is not straightened but replaced, as straightened steel is fatigued and will bend again under load. The link pins are secured with their retainers. Left and right levers are mirror images and are ordered separately.

Specifications

Compatibility

According to the product card, the part number is 331/43848. Fit is confirmed by the part number and the machine serial number. Other parts are in Front loader arm.

Fitting

Large structural parts are fitted with suitable lifting equipment, with the machine made safe and the attachments lowered to the ground. Pins and bushes are cleaned and greased, and bolts tightened to the specified torque. After assembly the movement is tried slowly through its full travel to check that nothing binds.
