Crankshaft thrust washers 02/192083 Perkins AK, aftermarket

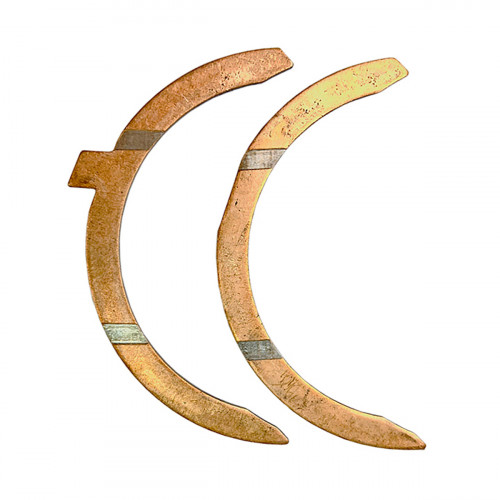

Crankshaft thrust washers 02/192083 is an aftermarket part for the Perkins 1000 series (AK) engine. The card also lists 31137311, T427336, U5TW0002, 10000-93254, 032-9090. The photo shows two half-ring washers.

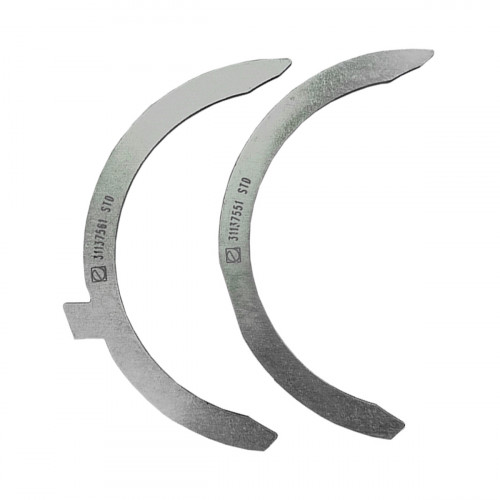

Thrust washers limit the crankshaft's end float and sit on each side of one main bearing housing. Clutch and torque converter loads push the shaft along its axis; as the washers wear, end float grows and the thrust faces of shaft and block can be damaged. Excess float shows as fore-and-aft movement of the crank pulley and a knock from the front of the engine. The photo shows a half-ring washer. The washers have a steel back with an anti-friction lining; when the lining wears, the steel shows through. Excess end float can also show as the crankshaft moving forward when the clutch pedal is pressed. It is measured with a dial gauge while levering the shaft back and forth. The end float limit is given in the service manual; when it is exceeded, the washers are replaced. The engine uses two upper and two lower washers.

Specifications

Compatibility

The part is listed for JCB backhoe loaders with Perkins engines. Other parts are in Perkins engine.

Fitting

Fit the washers oiled, with their tabs in the cap notches. Turn the crankshaft by hand to check for binding.
