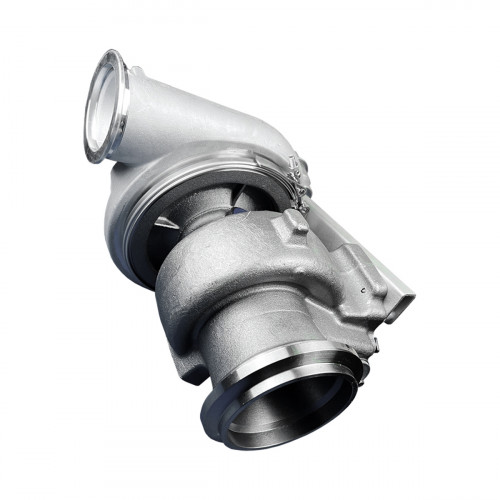

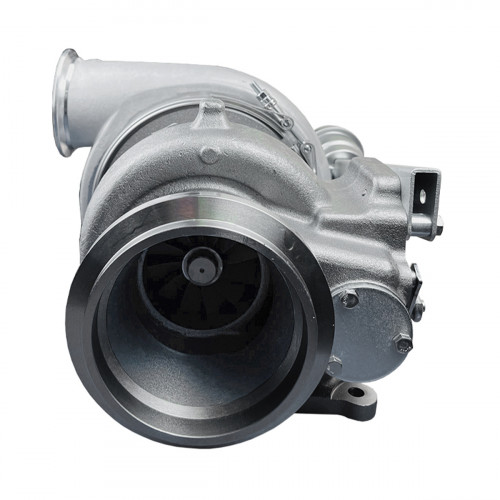

Turbocharger 4089854 Cummins, aftermarket

Turbocharger 4089854 is an aftermarket part for the Cummins engine.

The turbine wheel is driven by exhaust energy, and the compressor wheel on the same shaft pushes air into the engine. A failing turbo shows as loss of power, black or blue smoke, whistling, oil in the intake or exhaust and shaft play. Most failures come from oil starvation, dirty oil or dust passing the air filter; these causes must be cleared before a new unit is fitted. When ordering, give the engine serial number and the data from the old turbo's label. If oil has collected in the intake and intercooler after a turbo failure, clean them out as well. Because the turbo shaft spins at very high speed, oil cleanliness directly sets bearing life. The turbo bolts to the exhaust manifold by its flange; the oil feed and drain pipes and the intake and boost hoses connect around it. The wastegate actuator limits boost pressure. The turbo is supplied new. Boost pressure and wheel sizes are matched to the engine; the wrong turbo causes power loss or excessive boost.

Specifications

Compatibility

Other parts are in JCB Dieselmax engine.

Fitting

When fitting, check the intake hoses and clamps and clean the tract so that nothing enters the compressor. Tighten the exhaust flange with new lock nuts. The oil drain pipe must be clear, otherwise oil is forced past the turbo seals.
