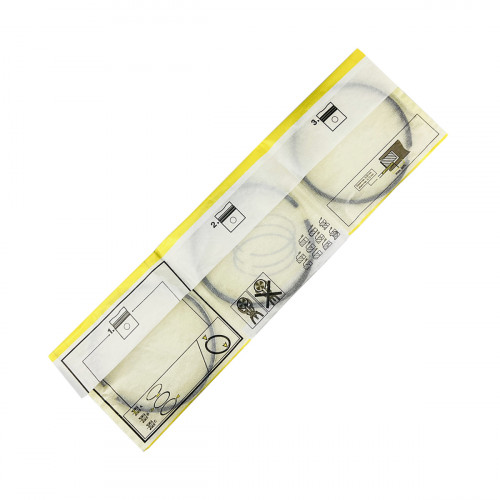

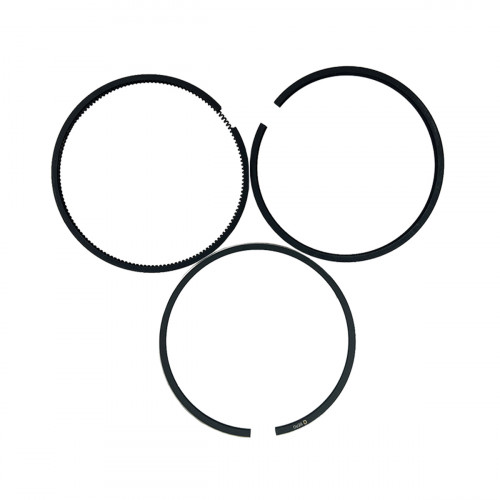

Piston ring set 320/09299 JCB Dieselmax standard, aftermarket

Piston ring set 320/09299, standard is an aftermarket part for the JCB Dieselmax 444 engine.

The rings rely on the hone pattern on the bore: it holds oil and helps the rings bed in. In a glazed bore new rings never bed in and the engine keeps burning oil. So when rings are changed the bore is at least lightly honed, and the big-end bearings are checked too. After a ring change, watch the oil consumption and exhaust smoke during the first working hours. The top face of the compression rings is marked; a ring fitted upside down pumps oil into the combustion chamber.

Specifications

Compatibility

The part is listed for JCB 3CX and 4CX backhoe loaders. The set is for standard pistons in the Tier 3 turbo versions of the Dieselmax 444. The catalogue also has the genuine version and OEM version of this part. For a standard piston see the piston 320/09249. Other parts are in JCB Dieselmax engine.

Fitting

Before fitting, measure the ring end gap in the bore with a feeler gauge. Fit the rings with ring pliers, TOP mark up, and stagger the gaps. Clean the bore after honing and run the engine in at light load.
