Planet gear 138736 Carraro, aftermarket

138736

Brand
BOYPAR
Article
138736
Machine system
Transmission
Part type
Planet gear
Machine brand
Various brands
Manufacturing type
Aftermarket
Compatibility
Carraro
Machine series
Various models
All the features

In stock

0.00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

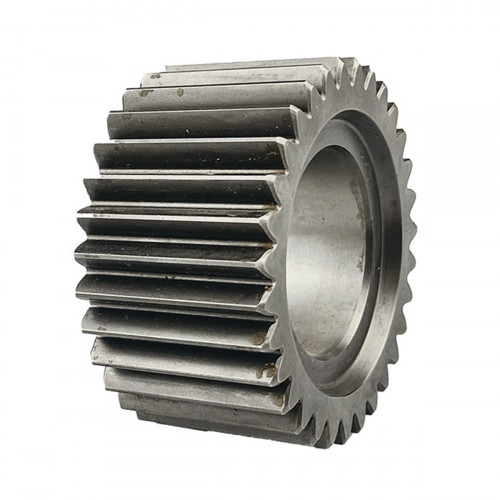

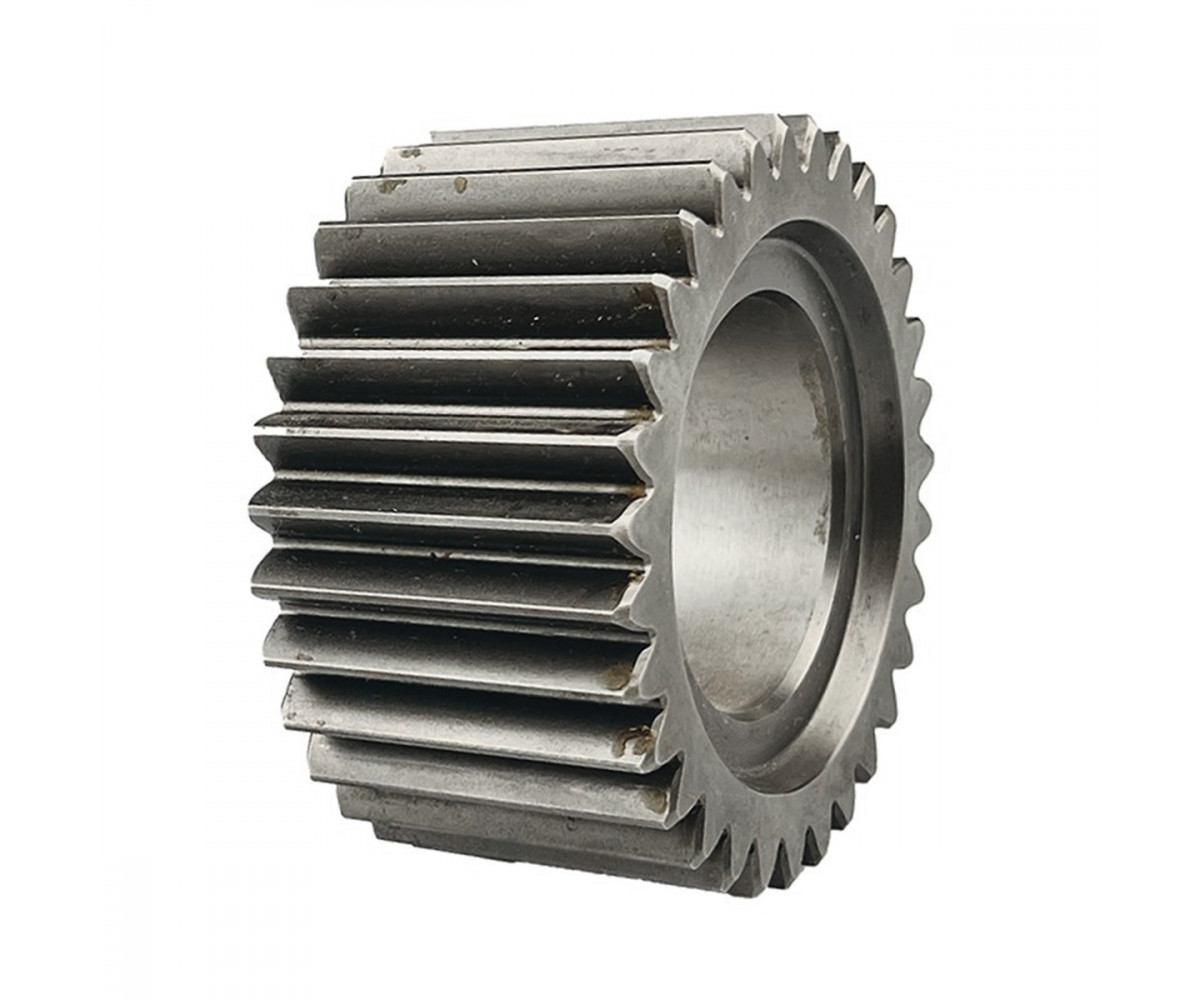

Planet gear 138736 is an aftermarket part for the backhoe loaders with Carraro axles. This gear is a planet gear of the planetary gearbox.

The gears are chosen by part number according to tooth count, module and spline form, and front and rear versions of the same axle may use different gears. The planetary oil is changed with the type and at the interval the maker specifies, since a low oil level wears the teeth quickly. After new gears are fitted, the first oil change can be done earlier.

Specifications

Part number	138736
Production type	Aftermarket
Part type	Planet gear
System / group	Transmission

Compatibility

According to the product card, Carraro 138736 is a planet gear; cross numbers: 6193419M1, 292894A1, VOE11709373, 320-8606. Fit is confirmed by the axle or transmission type. Other parts are in Carraro.

Fitting

For the change, remove the wheel, drain the planetary oil and take off the hub carrier. Fit the gears with their pins and bearings the right way round, making sure the sun gear circlip seats properly. Renew the gaskets, tighten the bolts to the specified torque and fill the planetary with the specified oil. The gear comes new; before fitting, check the teeth for burrs or impact marks. Hold the planet gear needles in place with grease during assembly.
