Brake friction disc S06/42934 Hidromek, aftermarket

S06/42934

Brand
JF Parts
Article
S06/42934
Machine system
Brake system
Part type
Friction disc
Machine brand
HIDROMEK
Manufacturing type
Aftermarket
Compatibility
Carraro
Machine series
HMK 102B, HMK 102S, HMK 105, HMK 62
All the features

In stock

0.00 ₺

We do not publish prices: they depend on exchange rates and change often. Click «Request price» and we will quote the current price on the day you ask.

Check the exact specifications and compatibility with your machine with our managers.

We are available Monday to Saturday, 9:00 – 18:00; closed on Sunday.

Free delivery to the carrier of your choice, or collect your order in Istanbul.

Could not find the part you need? Write to us and we will help you find an alternative or order it from the manufacturer.

Message on WhatsApp Message on Telegram Call us: +90 531 224 49 66

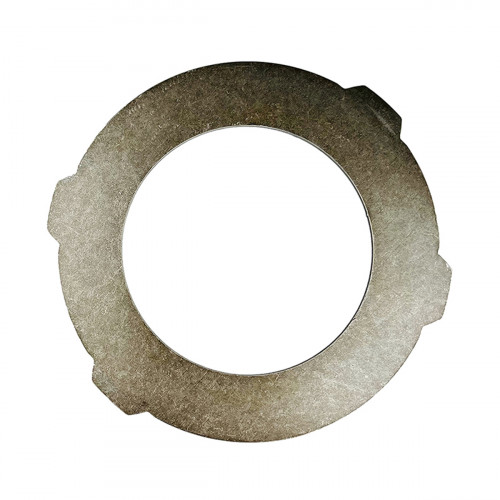

For the Hidromek backhoe loaders: brake friction disc S06/42934, an aftermarket part. This is the friction-lined disc of the wet disc brake.

Friction plates are chosen by part number according to diameter, spline count and thickness and are replaced as a set on one side of the axle. When changing them, check the steel counter plates, brake piston seals and back-off parts too. Soak the plates in clean axle oil before fitting. Plate thickness is measured with a caliper and compared with the service limit.

Specifications

Part number	S06/42934
Production type	Aftermarket
Part type	Friction disc
System / group	Brake system
Machine make	HIDROMEK
Series / model	HMK 102B, HMK 102S, HMK 105, HMK 62

Compatibility

According to the product card, Hidromek S06/42934 is a brake plate. Fit is confirmed by the axle or transmission type. Other parts are in Carraro.

Fitting

The plates are stacked in their original order with the brake housing open, taking care not to mix up the friction and steel plates. Renew the housing gasket, fill the axle with the specified oil and test and bed in the brakes at low speed. The plates come new; check the number of plates in the set for each side of the axle against the service manual. Keep the friction surfaces free of anything but oil and do not handle them with dirty hands. If the brake piston seals leak, the plates can be contaminated with brake fluid, so the piston seals are checked too.
