Brake master cylinder 102027A1 Case, aftermarket

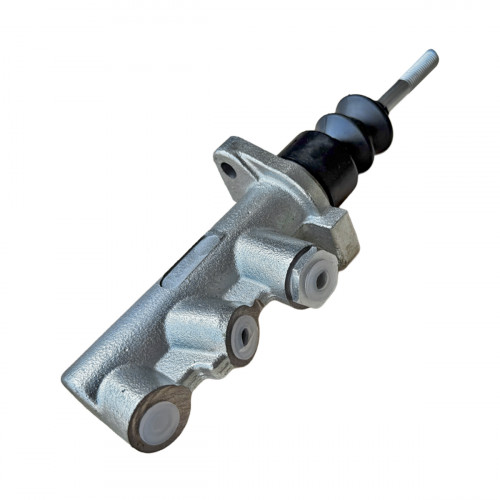

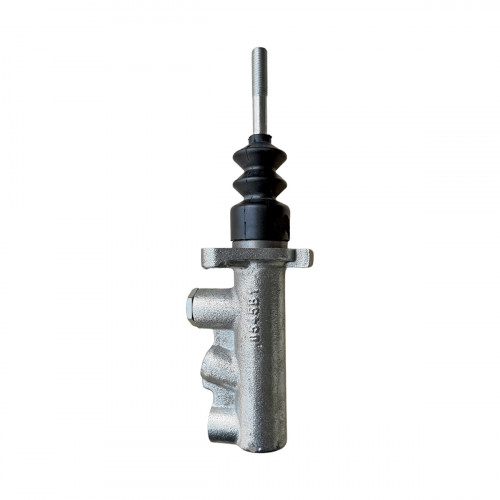

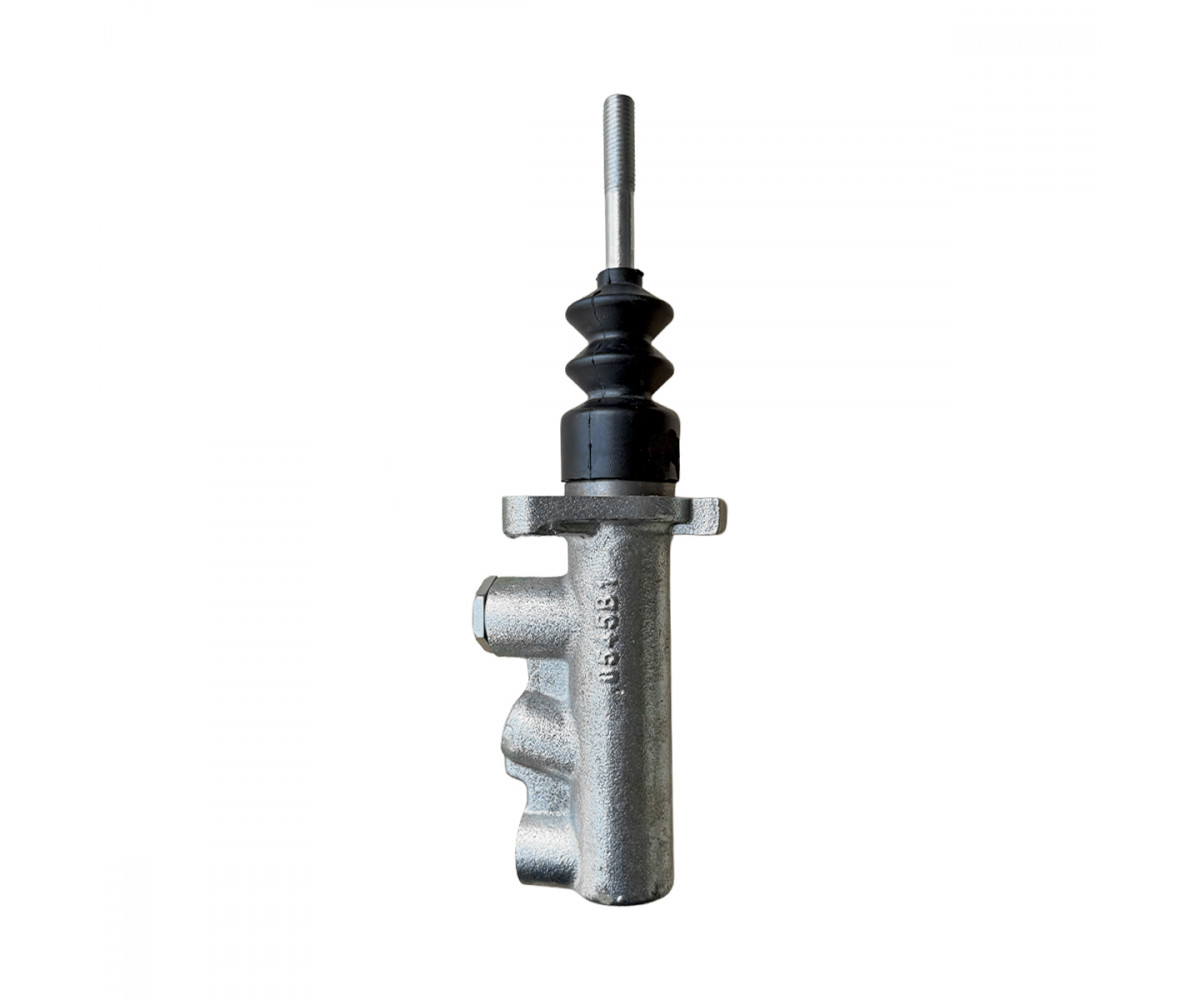

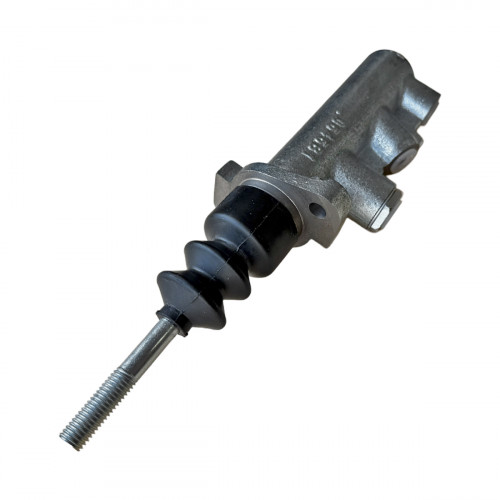

Brake master cylinder 102027A1 is an aftermarket part for the Case machines.

The brake master cylinder turns the force the operator applies to the pedal into fluid pressure and sends it through the brake lines to the brake pistons. When the pedal is pressed, the cylinder piston moves forward, the main cup seal closes the feed port and pushes fluid into the line; when the pedal is released, a spring returns the piston and fluid refills from the reservoir. Worn internal seals make the pedal sink slowly, delay braking or make one side brake more weakly. Leaks from the body or at the pedal end also show that the cylinder needs replacing. The pedal latch and the pedal return springs are checked too, as a sticking pedal will stop a new cylinder from returning fully as well.

Specifications

Compatibility

According to the product card, 102027A1 is a brake master cylinder. The card also lists 1287734C92. Machines listed on the card: Case 5120. Fit is confirmed by the part number. Other parts are in Brake cylinders.

Fitting

Before removing the cylinder, park the machine on level ground and chock the wheels. Catch the fluid in a container when disconnecting the lines and protect the ports from dirt. After fitting the new cylinder, set the pedal free play, bleed the system and test the brakes at low speed before work.
