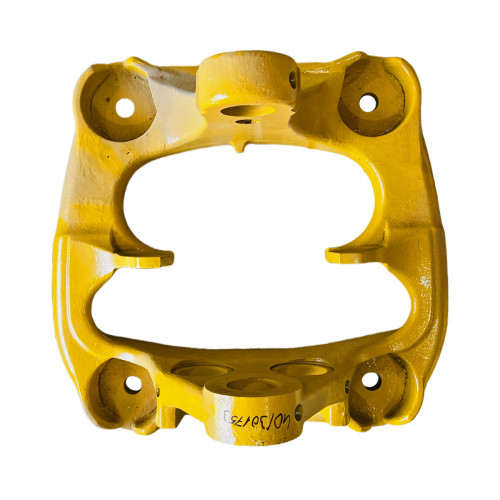

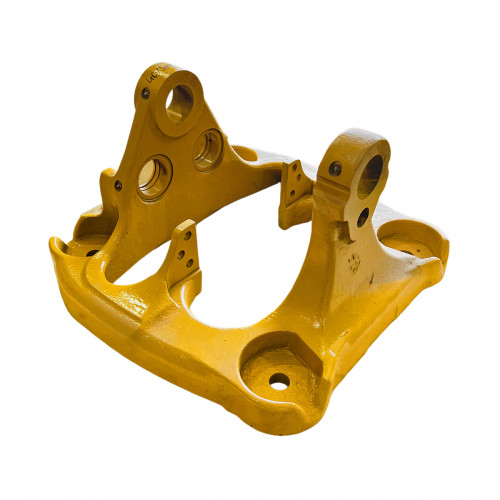

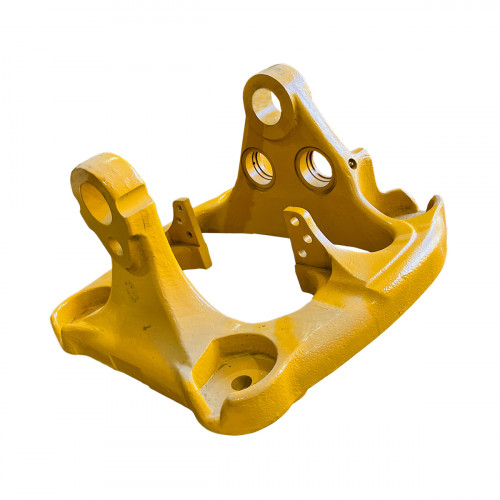

Carriage 333/E5750 JCB, genuine

Carriage 333/E5750 is a genuine JCB part for the JCB machines. According to the product card, this part is a carriage.

The backhoe carriage connects the swing tower of the backhoe to the rear of the chassis. On sideshift machines the carriage slides left and right on rails at the rear of the chassis, letting the operator dig close to a wall or the edge of an obstacle. During work the carriage is clamped to the rails by hydraulic locks. Since all the digging forces pass through it, its body must be free of cracks, its clamping faces of wear and its slides of play. The carriage slide pads and clamp shoes are checked during routine servicing, and the rail grease passages are kept clear, as dry rails wear the pads quickly.

Specifications

Compatibility

According to the product card, the part number is 333/E5750. The card also lists 123/05546. Fit is confirmed by the part number and the machine serial number. The catalogue also has the aftermarket version of this part. Other parts are in Backhoe arm.

Fitting

Large structural parts are fitted with suitable lifting equipment, with the machine made safe and the attachments lowered to the ground. Pins and bushes are cleaned and greased, and bolts tightened to the specified torque. After assembly the movement is tried slowly through its full travel to check that nothing binds.
