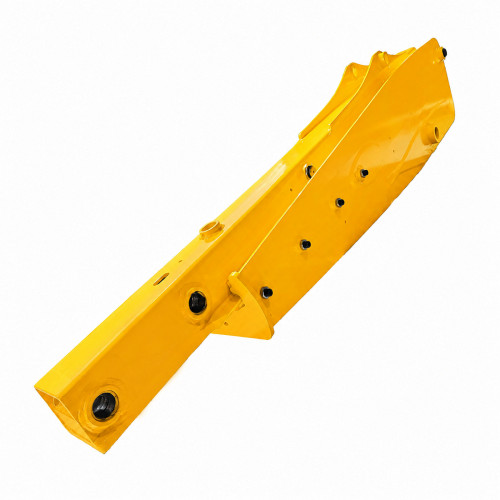

Backhoe dipper for extending dipper 333/P7745 JCB 3CX/4CX, aftermarket

For the JCB 3CX and 4CX backhoe loaders: backhoe dipper for extending dipper 333/P7745, an aftermarket part. According to the product card, this part is a backhoe dipper for extending dipper.

Boom and dipper sections are chosen by part number for the machine model and dipper length. New slide pads are used when fitting, the clearance is set with shims and the sliding surfaces are greased. After assembly the section is extended and retracted through its full stroke several times. The sliding surfaces are kept clean and free of packed soil. When the section is replaced, the extension ram and hoses are checked for leaks and chafing. The clearance between the slide pads is measured with the section fully extended and adjusted with shims if needed: too much clearance causes knocking while digging, too little causes binding.

Specifications

Compatibility

According to the product card, the part number is 333/P7745. Fit is confirmed by the part number and the machine serial number. Other parts are in Backhoe arm.

Fitting

Large structural parts are fitted with suitable lifting equipment, with the machine made safe and the attachments lowered to the ground. Pins and bushes are cleaned and greased, and bolts tightened to the specified torque. After assembly the movement is tried slowly through its full travel to check that nothing binds.
