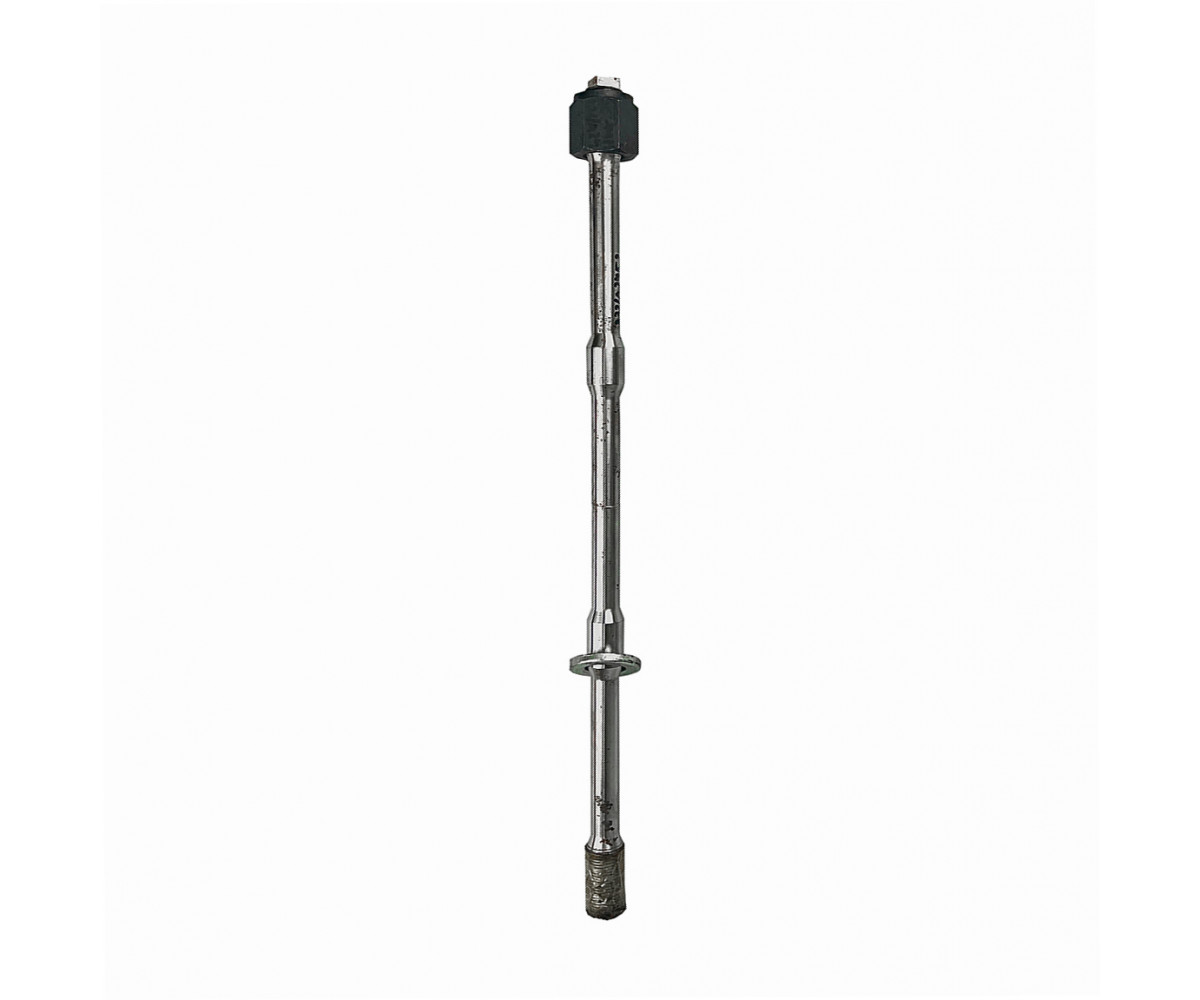

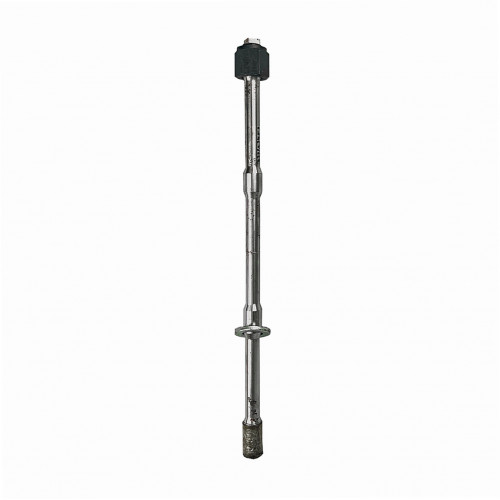

HM380 breaker cylinder bolt 580 mm 332/A2452 JCB, aftermarket

HM380 breaker cylinder bolt 580 mm 332/A2452 is an aftermarket part for the JCB hydraulic breakers. According to the product card, this part is a breaker cylinder bolt for the HM380 breaker.

The front head, cylinder and back head of a breaker are held together by long through bolts (side rods), and the side plates and housing are fixed with separate bolts. These bolts take heavy tensile loads with every blow. A loose through bolt lets the body parts move, causes oil leaks and finally breaks. The torque of the through bolts is therefore checked regularly.

Specifications

Compatibility

According to the product card, the part number is 332/A2452. Fit is confirmed by the part number and the breaker or machine serial number. Other parts are in JCB hydraulic breaker parts.

Fitting

Before working on the breaker, stop the machine, release the hydraulic pressure and lower the breaker to the ground in a stable position. If the nitrogen chamber is involved, release the gas pressure first as the maker instructs. After fitting the part, tighten the bolts to the specified torque, grease the tool bush and test the breaker briefly under light load.
